Description

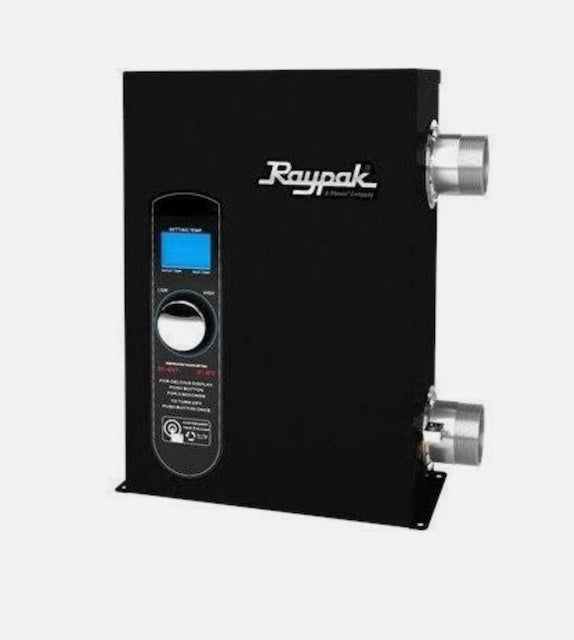

Raypak E3T Electric Pool & Spa Heater, 5.5kW, 240V
Upgrade your pool or spa heating system with the Raypak E3T Electric Pool & Spa Heater (5.5 kW, 240 V, single-phase). Featuring rugged titanium heating elements encased in 316L marine-grade stainless steel, this unit delivers corrosion-resistant, efficient performance—even in saltwater environments. Its solid-state controls and flow-sensor design offer whisper-quiet, modulating heat output, while a bright digital display provides real-time inlet/outlet temperatures, flow rate, and diagnostic alerts.
Specifications:
🔧 Technical Specifications
| Specification | Details |
|---|---|
| Model Number | ELS‑R‑0005‑1‑TiB (5.5 kW) |
| Product #: | RAY‑15‑0012 (cross-reference 017121, 100‑10000662) |
| Power Output | 5.5 kW · 18,767 BTU/hr ebay.com+6sunplay.com+6royalswimmingpools.com+6 |
| Voltage | 240 VAC, single-phase, 60 Hz |
| Amp Draw / Breaker | ~30 A service |
| Element Material | Titanium |
| Housing Material | 316L marine-grade stainless steel |
| Flow Activation Range | Min 15 GPM (57 LPM) – Max 60 GPM (227 LPM) |
| Plumbing Connections | 1½″ NPT union fittings (included) |
| Thermal Efficiency | 100 % |
| Safety Features | Freeze/low-temp protection, flow monitoring, overheat, diagnostic codes (E1–E10) |
| Control Interface | Digital display with inlet/outlet temps, flow, fault codes |
| Dimensions (H × W × D) | 12.125″ × 9″ × 4.75″ (30.8 × 22.8 × 12 cm) |
| Weight | 15 lb (≈ 6.8 kg) |
| Warranty | 1-year limited (extended options available via Raypak retail partners) |
What's in the Box:
-
E3T heater unit (ELS‑R‑0005‑1‑TiB, 5.5 kW)
-
User manual—comprehensive installation and operation guide
-
Warranty documentation, including manufacturer’s limited warranty
