Description

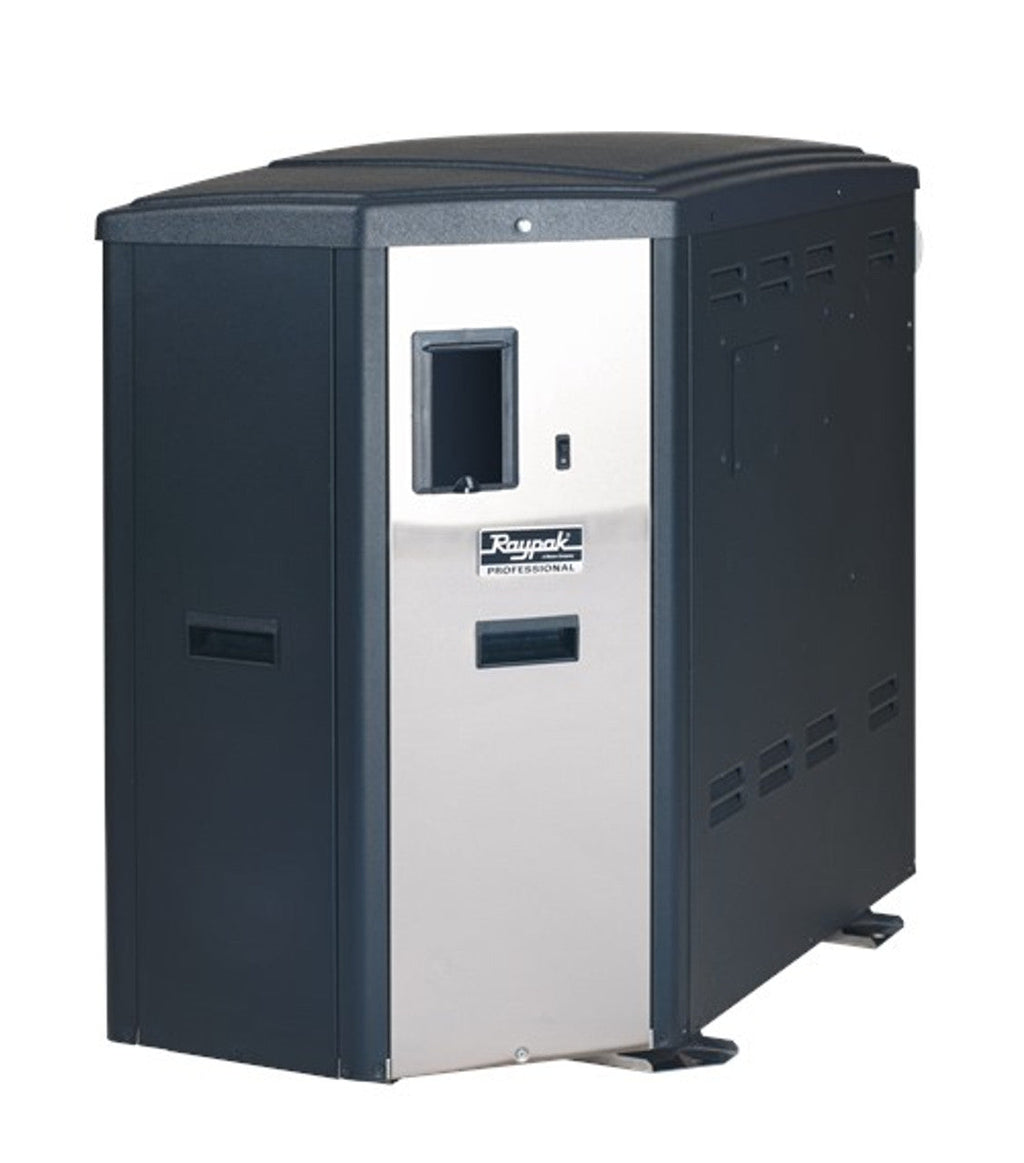

Raypak 399K BTU ASME Natural Gas Pool & Spa Heater – Electronic Ignition (S-R410-EN / 014280)
Get the most out of your pool even during the winters with the Raypak Residential Pool & Spa Gas Heater!
The Raypak S-R410-EP ASME-014280 delivers an output of 399,000 BTUs per hour. It runs on natural gas, has low environmental impact, and meets clean air-quality standards. Stainless steel is used liberally to prevent corrosion, so it’s a great choice for saltwater and chemically treated in-ground pools. Direct spark ignition, flow switch to eliminate possible ‘false water’ flow issues, metal fiber mesh burner, and a microprocessor-controlled thermostat are the other features included amongst others.
- 94% Efficiency
- ASME Code Stainless Steel Marine-Grade Heat Exchanger, stamped for 80 PSIG and National Board registered.
- 75 lb. Pressure relief valve and T&P gauge
- External bypass for high flow rates (up to 125 GPM)
- Indoor/outdoor construction
- 2” PVC Slip inlet/outlet connection
- 115VAC 60Hz 1 Ph Power supply
- Electronic, Intermittent Direct Spark Ignition (DSI)
- Digital display with diagnostics and 7-day time clock
- Air-fuel ratio combustion system provides a modulating response to changing needs
- Condensate Drain port, ½” PVC
- Natural gas or propane
- Low NOx, meets SCAQMD rule 1146.2
- Requires Cat IV Venting: PVC, CPVC, Dura-Vent Polypro, or stainless steel
SPECIFICATIONS:
Phase: 1-Phase
Department: Heaters
BTUH Input: 399000
Cabinet Depth: 35-1/2 Inch
Cabinet Height: 34-1/8 Inch
Cabinet Width: 20-3/16 Inch
Control Type: Digital Electronic
Elevation: 0 - 4500 ft
Flow Rate: 40 to 125 gpm
Flue Diameter: 4 Inch
Frequency Rating: 60 Hz
Gas Connection: 3/4 Inch NPT
Gas Type: Liquid Propane
Headers: Super-Austenitic Stainless Steel
Item: Condensing Pool Heater
Model Number: S-R410-EP
Standards Approvals: ASME Certified
Tubing Material: Super-Austenitic Stainless Steel
Voltage Rating: 120/24 V
Water Connection: 2 Inch NPT
Weight: 300 lbs.
Limited Warranty: 3 Year Parts and Labor
WHAT’S IN THE BOX:
1 x Raypak Residential Pool & Spa Natural Gas Heater-S-R410-EP ASME-014280 399K BTUH
