Description

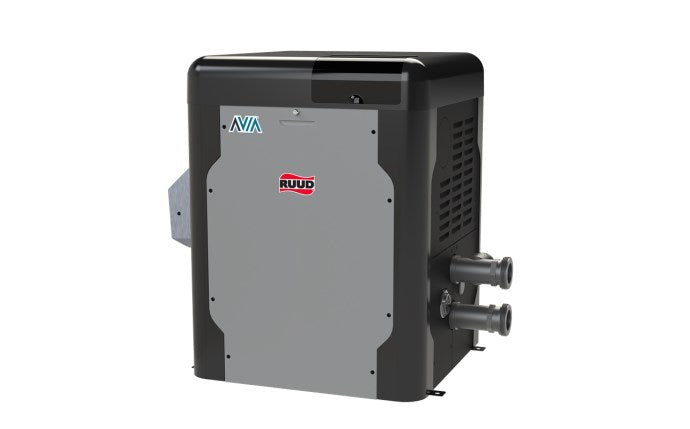

RUUD AVIA 399K BTU Liquid Propane Pool & Spa Heater – Low NOx & WiFi Enabled (P-D404A-EP-C)
Managing your pool heater has never been easier or smarter. AVIA™ is built with an innovative Wi-Fi enabled control system that allows you to manage your pool heater and ecosystem through its easy to use touch control interface. No need for a separate control panel to manage your pool heater and ecosystem, AVIA™ does it All.
Specifications
- Cabinet Depth: 23.24 inch
- Cabinet Height: 30.38 inch
- Cabinet Width: 23.22 inch
- Channel: Pool Equipmenrt
- Color: Maroon, Dark Gray, Light Gray
- Commercial, Residential, or Professional: Residential
- Control Type: Digital
- Each Product Weigh: t203 pound
- Finish: Matte
- Flow Rate Max: 100 gal/min
- Flow Rate Min: 40 gal/min
- Frequency Rating (Hz): 60
- Fuel Type: Propane
- Ignition Type: Electronic
- Includes: (2) 2" CPVC Tailpiece, (2) 2" CPVC Ring Nut, (2) O-rings, (1) 120V Blower Adapter, (1) 3-Wire Remote Harness, (1) Auxiliary Harness, (1) Raymote Quick Start Guide
- Min Circuit Ampacity: 1.2 amperage
- Product Depth: 23.22 inch
- Product Height: 30.38 inch
- Product Weight: 135 pound
- Product Width: 32.61 inch
- Standards Approvals: CSA Certified, ANSI Certified
- Voltage: 120V, 240V
- BTU Input: 399 British thermal unit
- Elevation Max: 4500 foot
- Flue Diameter: 4 inch
- Gas Connection: 0.75 inch
- Gas Connection FIT: NPT
- Header Material: Polymer
- Heat Exchanger Material: Copper
- Heater Color: Maroon, Gray
- Housing Finish: Matte
- Indoor Vent Pipe Diameter: 4 inch
- Maximum Circuit Breaker: 1.6 amperage
- Thermal Efficiency: 0.84
- Tubing Material: Copper
- Water Connection 1: 2 inch
- Water Connection 2: 2 inch
What's in the Box
1 x Ruud Raypak AVIA P-D404A-EP-C Liquid Propane Low NOx Pool and Spa Heater 399K BTU
1 x Instruction Manual
